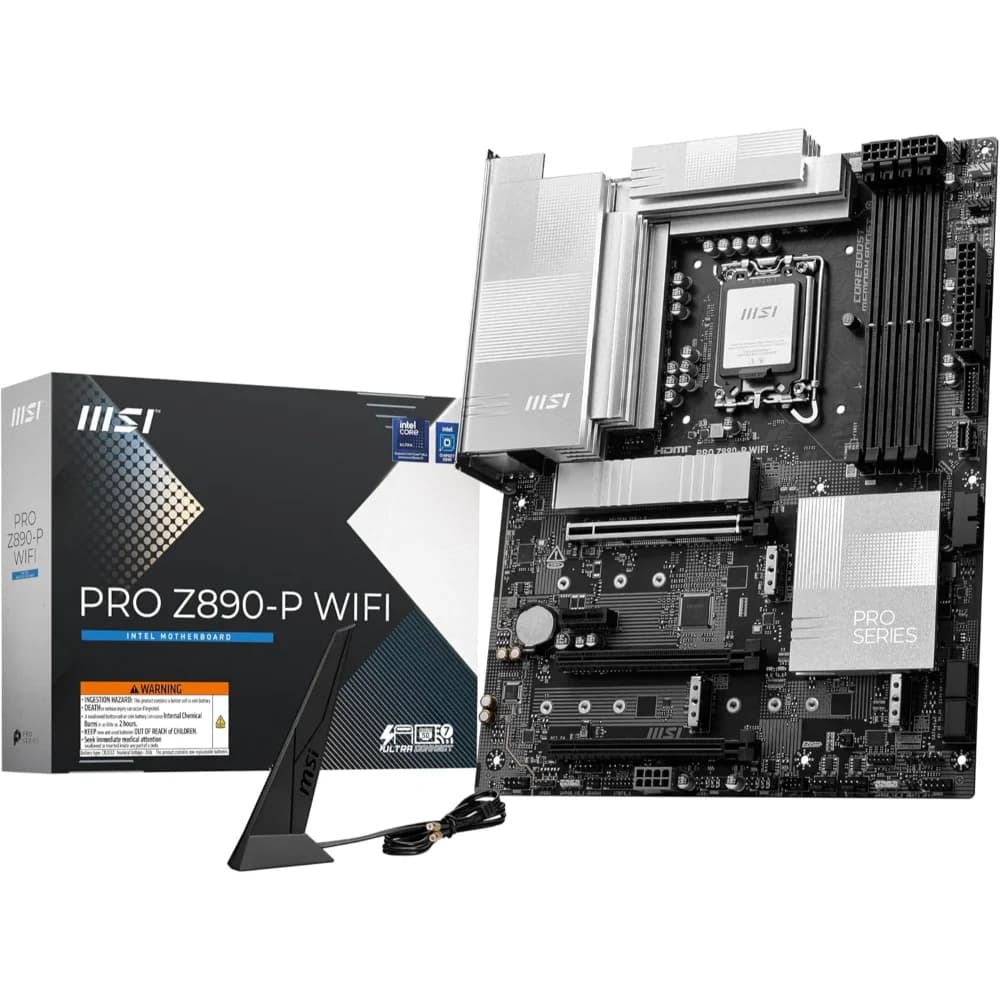

MSI PRO Z890-P WiFi ATX DDR5 Intel LGA 1851 Motherboard

Specifications

Socket Type

LGA 1851

Chipset

Intel Z890

Form factor

ATX

Memory Slots

4 x DDR5

Max Memory

256GB

Memory Speed

DDR5 9200+ MT/s (OC)

M.2 Slots

4 x M.2 (1 x PCIe 5.0 x4, 3 x PCIe 4.0 x4)

SATA Ports

4 x SATA 6Gb/s

PCIe Slots

1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x16 (x1 mode)

Networking

5GbE LAN, Wi-Fi 7, BT 5.4

Rear USB Ports

1 x Thunderbolt 4 (Type-C), 1 x USB 10Gbps (Type-C), 2 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 4 x USB 2.0, 1 x HDMI, 1 x DisplayPort, 1 x Audio Jack, 1 x Flash BIOS Button, 1 x PS/2

Internal USB Headers

1 x USB 20Gbps (Type-C), 1 x USB 3.2 header, 2 x USB 2.0 headers

PCIe Main Slot

1 x PCIe 5.0 x16

VRM Power Design

14+1+1+1 (55A)

Lighting Headers

3 x ARGB Gen 2, 1 x RGB

Onboard Audio

Realtek ALC897

Graphics Outputs

1 x DisplayPort, 1 x HDMI, 1 x Thunderbolt 4 (DP Alt)

Warranty

1 Year
